These KF-25 to KF-10 straight reducer vacuum fittings follow ISO-KF standards and have a flange size of NW-25 to NW-10. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

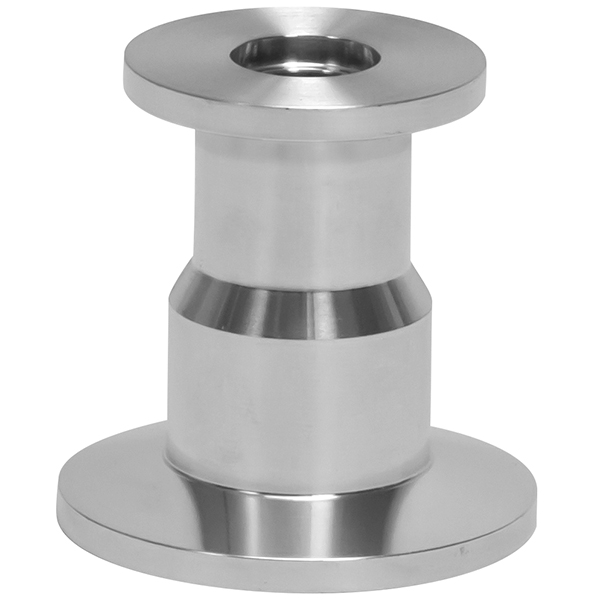

KF-25 to KF-10 Reducer

ISO-KF Flange Size: NW-25 to NW-10

Common Dimensions:

A = 0.87 in. (22mm)

B = 1.57 in. (40mm)
