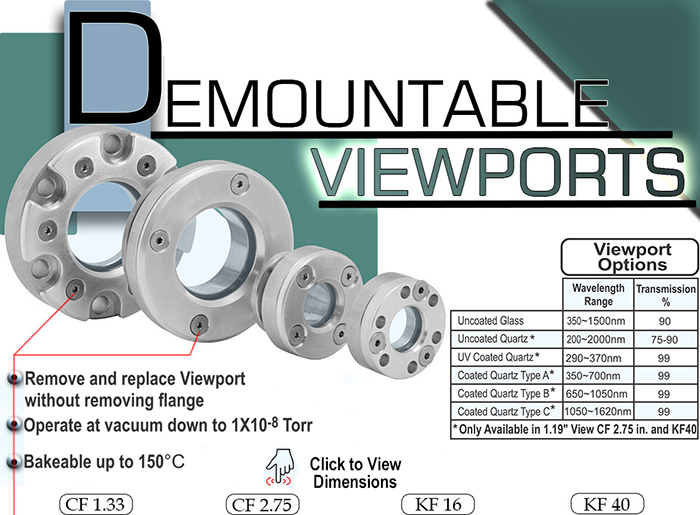

These Quick Flange demountable vacuum fittings have a flange size of KF16, NW16 with a glass viewport view diameter of 0.56 in and a glass thickness of 0.158". Demountable Viewports are used for ultra-high vacuum applications and molecular spectroscopy. These fittings use a Viton O-ring gasket, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. The operable wavelength of the glass is between 350nm to 1500nm. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2?, 4?, 6, 8, 10, 12, 13?, 14 and 16?. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. At present we have the following demountable viewport sizes listed in the graphic below and have replacement viewport glass and O-rings for sale.

KF Demountable Viewport KF16, Stainless Steel Fittings

KF Flange Size: NW KF16
