These bolt kits contain silver-plated 12-point head bolts, platenuts, and washers to fasten clearance hole 2.75 (2-3/4) inch CF Conflat flanged fittings. These confalt flages can be pumped down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2-1/8, 2-3/4, 4-1/2, 4-5/8, 6, 6-3/4, 8, 10, 12, 13-1/4, 14 and 16-1/2. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These are complete kits, with bolts, washers, and platenuts to fasten one conflat clearance hole 2.75 (2-3/4) inch double faced flange connection.

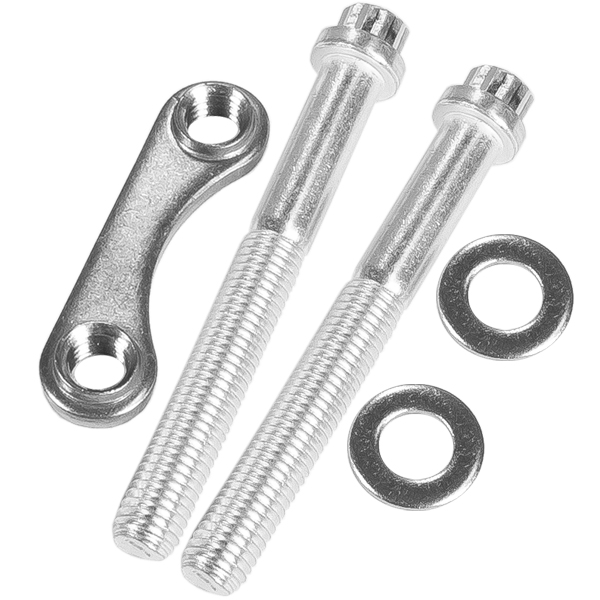

Complete Kit - 2.75 (2-3/4) inch Conflat Double Faced Flange Fasteners:

QTY 6, Silver-Plated 1/4 x 2.25 Inch Long 12-Point Bolts

QTY 6, Washers

QTY 3, Platenut
